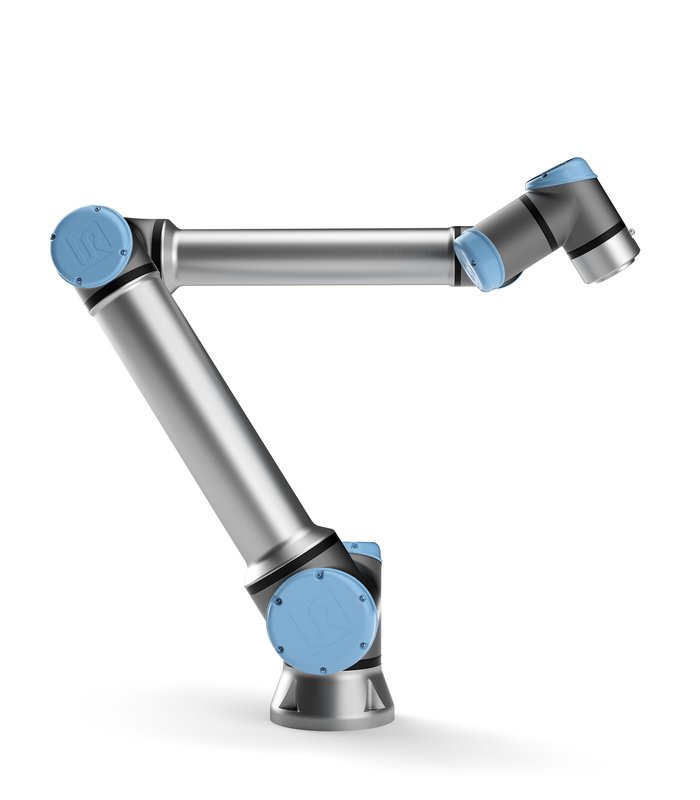

UR10E

Quick Facts:

Payload: 10 kg / 22 lbs

# of 360° Rotating Joints: 6

Reach: 1300 mm / 51.2 in

Download the Full SPECS Sheet Here

ALL OF THE UR10e SPECIFICATIONS

Largest Cobot available but still light-weight(less than 80 lbs), 22 pound payload, working radius of 51.2 inches. 360 degree joint rotation on all 6 joints!  Typical tool center point (TCP) speed 1 m/s (39.4 in/s)

HUMAN CENTRIC UX

Intuitive and adaptable, the Human Centric UX for the UR10e is the most advanced collaboration User interface software. Built with humans in mind the Human Centric UX is the next step in human and robot work interaction and is accompanied with the most straightforward program set-up.



BUILt-IN FORCE/TORQUE SENSOR TOOL

Never worry again about your task being ruined by false programming or add on malfunction. The tool force sensor on the UR10e will engage the automated stop function when the force exceeds the given ratio. Once programmed, the stop function will react when there is force/torque sensor interference, if the robot hits any object, or if the robot moves outside of the programmed boundaries.

BEST FOR LARGE TASKS AND PROCESSES

The UR10e is the heavy moving machine meant for distinct processes that require precision and reliability. These tasks/processes are found in the packaging, assembly, pick and place, and stacking functions but can be used for any heavy lifting program.
